LogTag TRED30-16U

Software-less Temperature Data Logger with USB and 60 Day Display

Software-less Temperature Data Logger with USB and 60 Day Display

Highlights

  • Easy to read LCD display with 60 day summary.
  • Built-in audible alarm
  • Software-less operation with USB-C connection and automatic PDF and CSV file generation
  • Auto-pause function - unplugging the external probe automatically suspends the alarm and statistics processing
  • User replaceable coin cell battery
  • 15,900 recordings capacity enough memory for 66 days @ 6 min logging








Software-less temperature measurement with built in USB-C connection an 60 day display.
Elevate your vaccine storage practices with the LogTag TRED30-16U! This enhanced, software-less data logger builds on the success of the best-selling TRED30-16, now with the new, built-in USB-C connection to complement the existing 3-pin cradle connection.
Designed for ease of use, the TRED30‑16U boasts a new, simplified LCD that displays minimum and maximum temperature values and offers a quick overview of temperature excursions over the past 60 days. This allows you to ensure the integr i ty of your vaccines with confidence.

The LogTag TRED30-16U Temperature Logger measures and stores up to 15,900 temperature readings over a -40°C to +99°C (-40°F to +210°F) measurement range

It complies with the guidelines of vaccine storage and handling from WHO, CDC, FDA, VFC, NIH, PHAC, AAP and more.

Product Model TRED30-16U (Replaceable Battery)
External Temperature Sensor Measurement Range -40 °C to +99 °C (-40 °F to +210 °F)
Recorder Operating Temperature Range -30 °C to +60 °C (-22 °F to +140 °F)
Storage Temperature Range -10 °C to +40 °C (14 °F to +104 °F)
Rated Temperature Reading Accuracy Better than ±0.5 °C (±0.9 °F) for -20 °C to +40 °C (-4 °F to +104 °F), typically ±0.3 °C (0.6 °F).
Better than ±0.8 °C (±1.4 °F) for -40 °C to -20 °C (-40 °F to -4 °F), typically ±0.5°C (0.9°F).
Better than ±0.8°C (±1.4 °F) for +40 °C to +70 °C (+104 °F to +158 °F), typically ±0.7 °C (1.3 °F)
Better than ±1.2 °C (±2.2 °F) for +70 °C to +99 °C (+158 °F to +210 °F), typically ±1 °C (1.8 °F).
Actual performance is typically much better than the rated values.
Accuracy figures can be improved by recalibration
Rated Temperature Reading Resolution 0.1 °C (0.2 °F) for measurements -40 °C to +50 °C (-40 °F to +122 °F)
0.2 °C (0.4 °F) for measurements +50 °C to +70 °C (+122 °F to +158 °F)
0.3 °C (0.5 °F) for measurements +70 °C to +80 °C (+158 °F to +176 °F)
0.4 °C-0.6 °C (0.7 °F to 1 °F) for measurements +80 °C to +99 °C (+176 °F to +210 °F)
LogTag Analyzer® currently displays to one decimal place of °C or °F.
The native resolution is what is stored in the LogTag
Recording Capacity 15,905 temperature readings. 66 days @ 6min logging
Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics
Sampling Interval Configurable from 30 seconds to hourly
Logging Start Options Push button start or specific date & time. Optional start delay of up to 18hours
Recording Indication State indicator “REC”
Download Time Typically less than 10 seconds for full memory (15,905 readings), depending on computer or readout device used
Environmental IP61 (when vertically mounted or hung)
Power source 3V CR2032 (LiMnO2 ) coin cell battery, user replaceable
Battery Life 1 year storage, followed by 1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly).
NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible
Real Time Clock Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C)
Size 93 mm(H) x 54.5 mm(W) x 8.6 mm(T)
Weight 41 g without External Probe
Case Material Polycarbonate
Standard External Probe Cable Lengths Standard: 1.5m (4’11”). Extended: 3 m (9’10”) (recommended maximum)

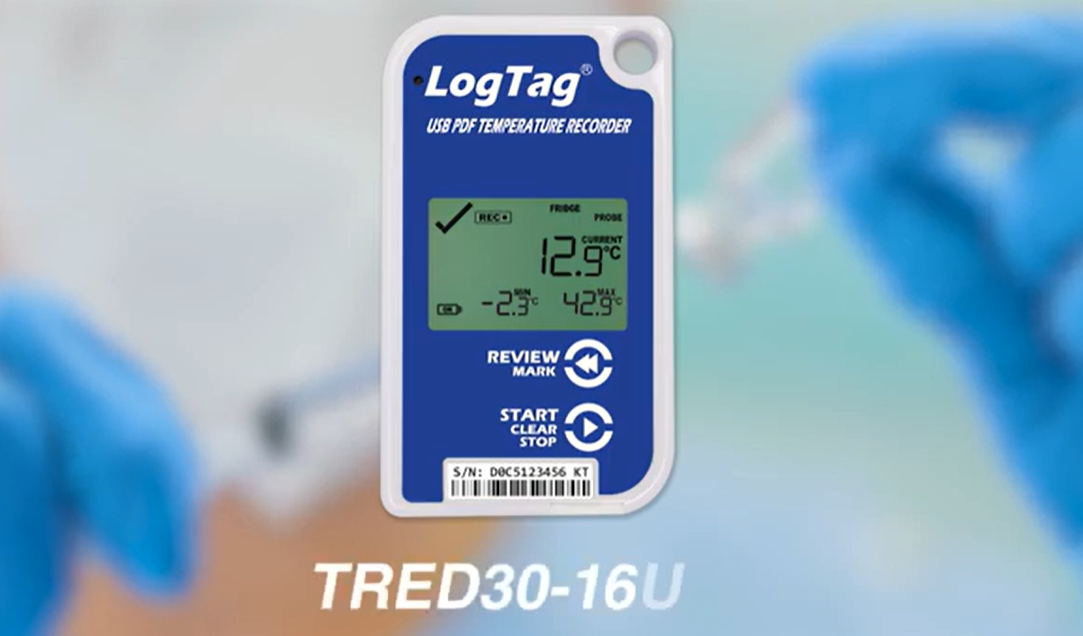

LogTag Video TRED30-16U
